Prometheus 存储引擎分析

发布: 2021-04-11   上次更新: 2024-03-25   分类: 数据库   标签: tsdb Prometheus

文章目录

Prometheus 作为云原生时代的时序数据库, 是当下最流行的监控平台之一,尽管其整体架构一直没怎么变,但其底层的存储引擎却演进了几个版本,感兴趣的读者可参考 Prometheus 存储层的演进。本文主要介绍 Prometheus V2 版本(现在主要使用)的存储格式细节,以及查询如何定位到符合条件的数据,旨在通过本文的分析,对 Prometheus 的存储引擎有更深入了解。

说明:本文并不会涉及到查询的解析与函数求值过程。代码分析基于 v2.25.2 版本。

背景知识

时序特点

时序数据的特点可以用一话概括:垂直写(最新数据),水平查。

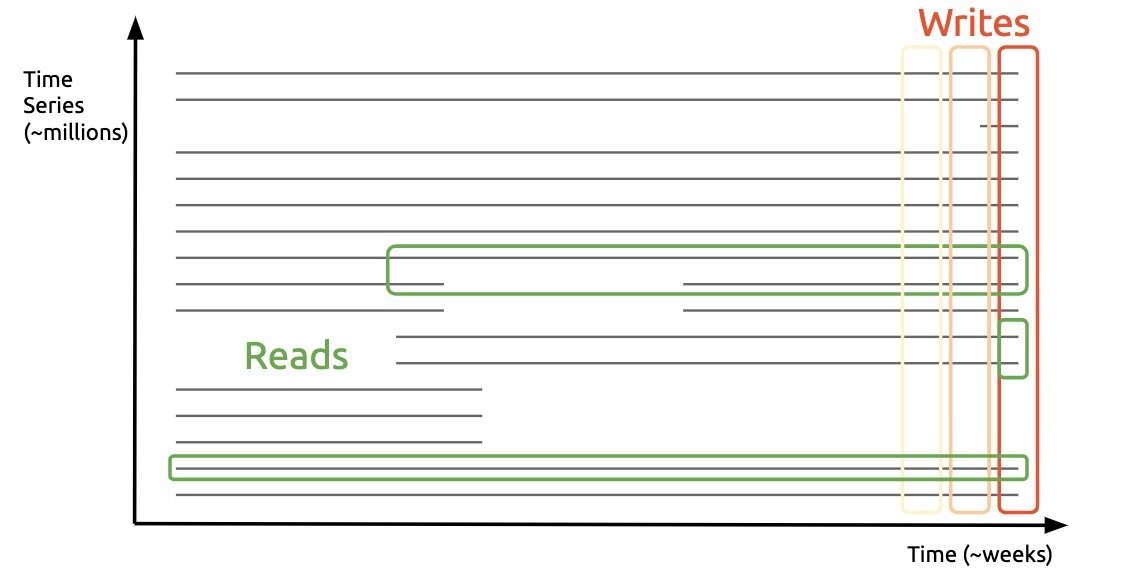

https://img.alicdn.com/imgextra/i4/581166664/O1CN01GSCLPT1z6A3QWdN19_!!581166664.jpg
时序特点

对于云原生场景来说,另一个特点是数据生命周期短,一次容器的扩缩容会导致时间线膨胀一倍。 了解这两个特点后,来看看 Prometheus 是如何存储数据来迎合上述模式:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
├── 01BKGV7JC0RY8A6MACW02A2PJD  // block 的 ULID
│   ├── chunks
│   │   └── 000001
│   ├── tombstones
│   ├── index
│   └── meta.json
├── chunks_head
│   └── 000001
└── wal
    ├── 000000002
    └── checkpoint.00000001
        └── 00000000

可以看到,数据目录主要有以下几部分:

  • block,一个时间段内(默认 2 小时)的所有数据,只读,用 ULID 命名。每一个 block 内主要包括:

    • chunks 固定大小(最大 128M)的 chunks 文件
    • index 索引文件,主要包含倒排索引的信息
    • meta.json 元信息,主要包括 block 的 minTime/maxTime,方便查询时过滤
  • chunks_head,当前在写入的 block 对应的 chunks 文件,只读,最多 120 个数据点,时间跨度最大 2 小时。
  • wal,Prometheus 采用攒批的方式来异步刷盘,因此需要 WAL 来保证数据可靠性

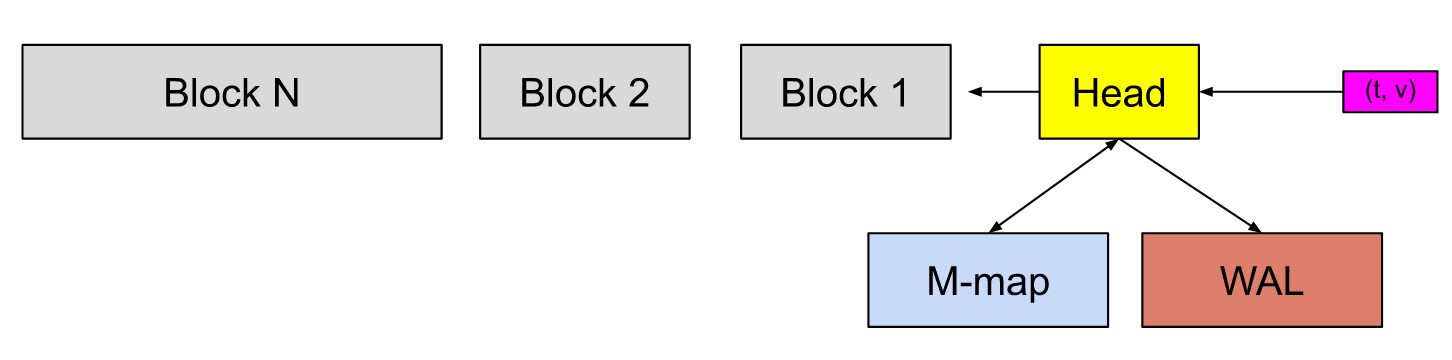

https://img.alicdn.com/imgextra/i3/581166664/O1CN01eC1PK31z6A3SfXFpd_!!581166664.jpg
Block 分布

通过上面的目录结构,不难看出 Prometheus 的设计思路:

  • 通过数据按时间分片的方式来解决数据生命周期短的问题
  • 通过内存攒批的方式来对应只写最新数据的场景

数据模式

Prometheus 支持的模式比较简单,只支持单值模式,如下:

1
2
cpu_usage{core="1", ip="130.25.175.171"} 14.04 1618137750
metric     labels                        value timesample

倒排索引

索引是支持多维搜索的主要手段,时序中的索引结构和搜索引擎的类似,是个倒排索引,可参考下图

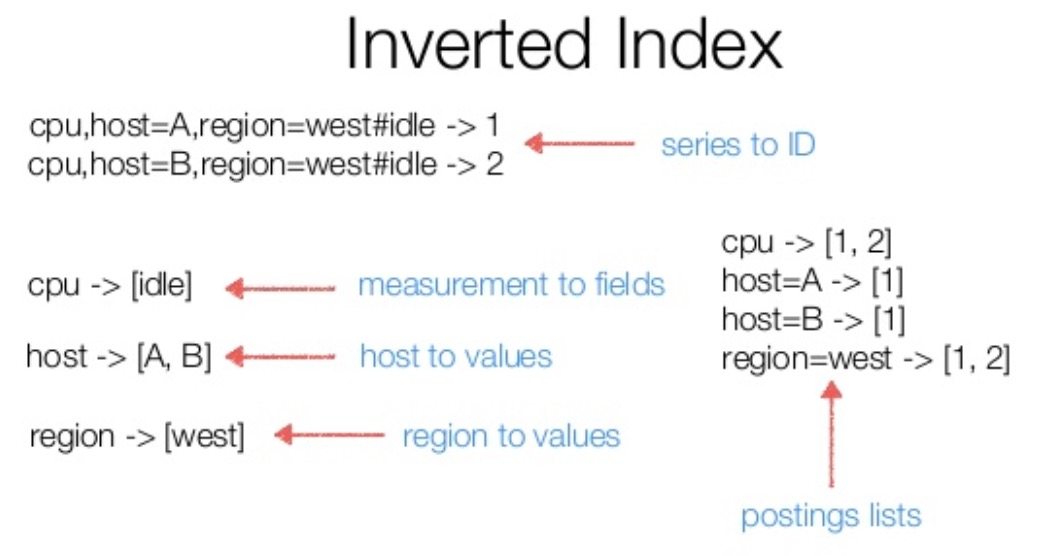

https://img.alicdn.com/imgextra/i3/581166664/O1CN01Bzbt3A1z6A3Q7J1Gl_!!581166664.jpg
倒排索引工作示意图

在一次查询中,会对涉及到的 label 分别求对应的 postings lists(即时间线集合),然后根据 filter 类型进行集合运算,最后根据运算结果得出的时间线,去查相应数据即可。

磁盘存储格式

数据格式

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
┌──────────────────────────────┐
│  magic(0x0130BC91) <4 byte>  │
├──────────────────────────────┤
│    version(1) <1 byte>       │
├──────────────────────────────┤
│    padding(0) <3 byte>       │
├──────────────────────────────┤
│ ┌──────────────────────────┐ │
│ │         Chunk 1          │ │
│ ├──────────────────────────┤ │
│ │          ...             │ │
│ ├──────────────────────────┤ │
│ │         Chunk N          │ │
│ └──────────────────────────┘ │
└──────────────────────────────┘

# 单个 chunk 内的结构
┌─────────────────────┬───────────────────────┬───────────────────────┬───────────────────┬───────────────┬──────────────┬────────────────┐
| series ref <8 byte> | mint <8 byte, uint64> | maxt <8 byte, uint64> | encoding <1 byte> | len <uvarint> | data <bytes> │ CRC32 <4 byte> │
└─────────────────────┴───────────────────────┴───────────────────────┴───────────────────┴───────────────┴──────────────┴────────────────┘

chunk 为数据在磁盘中的最小组织单元,需要明确以下两点:

  1. 单个 chunk 的时间跨度默认是 2 小时,Prometheus 后台会有合并操作,把时间相邻的 block 合到一起
  2. series ref 为时间线的唯一标示,由 8 个字节组成,前 4 个表示文件 id,后 4 个表示在文件内的 offset,需配合后文的索引结构来实现数据的定位

索引格式

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
┌────────────────────────────┬─────────────────────┐
│ magic(0xBAAAD700) <4b>     │ version(1) <1 byte> │
├────────────────────────────┴─────────────────────┤
│ ┌──────────────────────────────────────────────┐ │
│ │                 Symbol Table                 │ │
│ ├──────────────────────────────────────────────┤ │
│ │                    Series                    │ │
│ ├──────────────────────────────────────────────┤ │
│ │                 Label Index 1                │ │
│ ├──────────────────────────────────────────────┤ │
│ │                      ...                     │ │
│ ├──────────────────────────────────────────────┤ │
│ │                 Label Index N                │ │
│ ├──────────────────────────────────────────────┤ │
│ │                   Postings 1                 │ │
│ ├──────────────────────────────────────────────┤ │
│ │                      ...                     │ │
│ ├──────────────────────────────────────────────┤ │
│ │                   Postings N                 │ │
│ ├──────────────────────────────────────────────┤ │
│ │               Label Offset Table             │ │
│ ├──────────────────────────────────────────────┤ │
│ │             Postings Offset Table            │ │
│ ├──────────────────────────────────────────────┤ │
│ │                      TOC                     │ │
│ └──────────────────────────────────────────────┘ │
└──────────────────────────────────────────────────┘

在一个索引文件中,最主要的是以下几部分(从下往上):

  1. TOC 存储的是其他部分的 offset
  2. Postings Offset Table,用来存储倒排索引,Key 为 label name/value 序对,Value 为 Postings 在文件中的 offset。
  3. Postings N,存储的是具体的时间线序列
  4. Series,存储的是当前时间线,对应的 chunk 文件信息
  5. Label Offset Table 与 Label Index 目前在查询时没有使用到,这里不再讲述

每个部分的具体编码格式,可参考官方文档 Index Disk Format,这里重点讲述一次查询是如何找到符合条件的数据的:

  • 首先在 Posting Offset Table 中,找到对应 label 的 Postings 位置

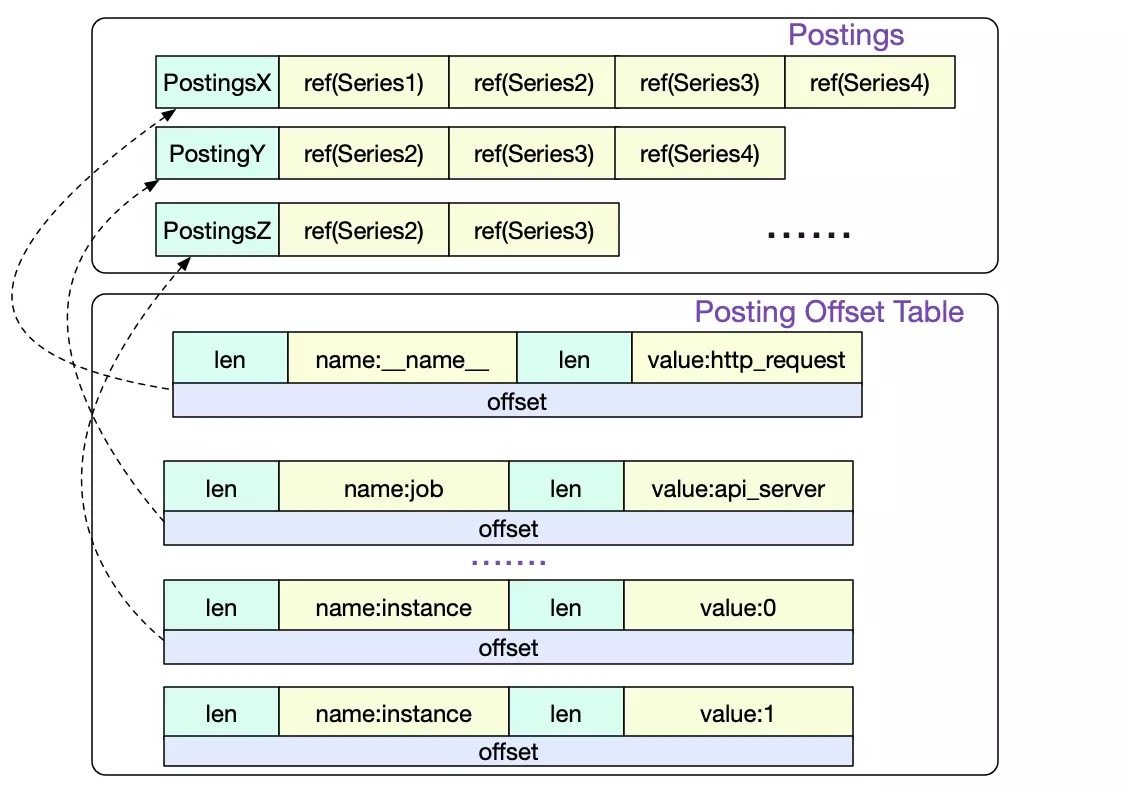

https://img.alicdn.com/imgextra/i2/581166664/O1CN01ncQkYZ1z6A3SfXvO3_!!581166664.jpg
offset table 到 postings 的映射过程
  • 然后再根据 Postings 中的 series 信息,找到对应的 chunk 位置,即上文中的 series ref。

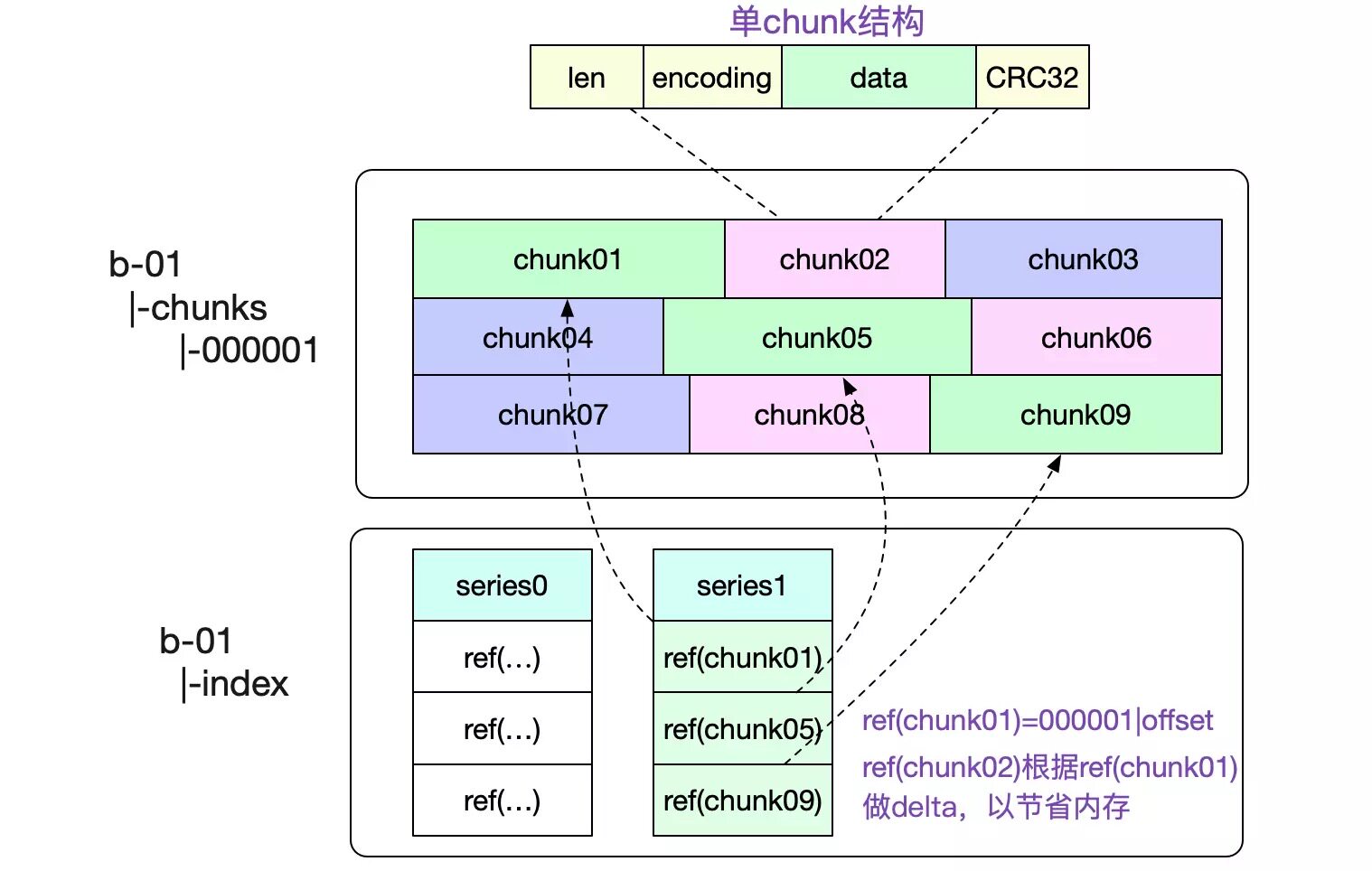

https://img.alicdn.com/imgextra/i4/581166664/O1CN01HsQNy31z6A3HT9l5B_!!581166664.jpg
series 到 chunks 数据文件的映射过程

使用方式

Prometheus 在启动时,会去加载数据元信息到内存中。主要有下面两部分:

  • block 的元信息,最主要的是 mint/maxt,用来确定一次查询是否需要查看当前 block 文件,之后把 chunks 文件以 mmap 方式打开

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27

    // open all blocks
    bDirs, err := blockDirs(dir)
    for _, bDir := range bDirs {
     meta, _, err := readMetaFile(bDir)
     // See if we already have the block in memory or open it otherwise.
     block, open := getBlock(loaded, meta.ULID)
     if !open {
         block, err = OpenBlock(l, bDir, chunkPool)
         if err != nil {
             corrupted[meta.ULID] = err
             continue
         }
     }
     blocks = append(blocks, block)
    }
    // open chunk files
    for _, fn := range files {
     f, err := fileutil.OpenMmapFile(fn)
     if err != nil {
         return nil, tsdb_errors.NewMulti(
             errors.Wrap(err, "mmap files"),
             tsdb_errors.CloseAll(cs),
         ).Err()
     }
     cs = append(cs, f)
     bs = append(bs, realByteSlice(f.Bytes()))
    }
  • block 对应的索引信息,主要是倒排索引。由于单个 label 对应的 Postings 可能会非常大,Prometheus 不是全量加载,而是每隔 32 个加载,来减轻内存压力。并且保证第一个与最后一个一定被加载,查询时采用类似跳表的方式进行 posting 定位。

    • 下面代码为 DB 启动时,读入 postings 的逻辑:

       1
       2
       3
       4
       5
       6
       7
       8
       9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26

      // For the postings offset table we keep every label name but only every nth
      // label value (plus the first and last one), to save memory.
      ReadOffsetTable(r.b, r.toc.PostingsTable, func(key []string, _ uint64, off int) error {
       if _, ok := r.postings[key[0]]; !ok {
           // Next label name.
           r.postings[key[0]] = []postingOffset{}
           if lastKey != nil {
               // Always include last value for each label name.
               r.postings[lastKey[0]] = append(r.postings[lastKey[0]], postingOffset{value: lastKey[1], off: lastOff})
           }
           lastKey = nil
           valueCount = 0
       }
       if valueCount%32 == 0 {
           r.postings[key[0]] = append(r.postings[key[0]], postingOffset{value: key[1], off: off})
           lastKey = nil
       } else {
           lastKey = key
           lastOff = off
       }
       valueCount++
      }

      if lastKey != nil {
       r.postings[lastKey[0]] = append(r.postings[lastKey[0]], postingOffset{value: lastKey[1], off: lastOff})
      }
    • 下面代码为根据 label 查询 postings 的逻辑,完整可见 index 的 Postings 方法

       1
       2
       3
       4
       5
       6
       7
       8
       9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
      33
      34
      35
      36
      37
      38
      39
      40
      41
      42
      43
      44
      45
      46
      47
      48
      49
      50
      51
      52
      53
      54
      55

      e, ok := r.postings[name] // name 为 label key
      if !ok || len(values) == 0 { // values 为当前需要查询的 label values
       return EmptyPostings(), nil
      }

      res := make([]Postings, 0, len(values))
      skip := 0
      valueIndex := 0
      for valueIndex < len(values) && values[valueIndex] < e[0].value {
       // Discard values before the start.
       valueIndex++
      }
      for valueIndex < len(values) {
       value := values[valueIndex]

       // 用二分查找,找到当前 value 在 postings 中的位置
       i := sort.Search(len(e), func(i int) bool { return e[i].value >= value })
       if i == len(e) {
           // We're past the end.
           break
       }
       if i > 0 && e[i].value != value {  // postings 中没有该 value,需要用前面一个来在文件中搜索
           // Need to look from previous entry.
           i--
       }
       // Don't Crc32 the entire postings offset table, this is very slow
       // so hope any issues were caught at startup.
       d := encoding.NewDecbufAt(r.b, int(r.toc.PostingsTable), nil)
       d.Skip(e[i].off)

       // Iterate on the offset table.
       var postingsOff uint64 // The offset into the postings table.
       for d.Err() == nil {
           // ... skip 逻辑省略
           v := d.UvarintBytes()       // Label value.
           postingsOff = d.Uvarint64() // Offset.
           for string(v) >= value {
               if string(v) == value {
                   // Read from the postings table.
                   d2 := encoding.NewDecbufAt(r.b, int(postingsOff), castagnoliTable)
                   _, p, err := r.dec.Postings(d2.Get())
                   res = append(res, p)
               }
               valueIndex++
               if valueIndex == len(values) {
                   break
               }
               value = values[valueIndex]
           }
           if i+1 == len(e) || value >= e[i+1].value || valueIndex == len(values) {
               // Need to go to a later postings offset entry, if there is one.
               break
           }
       }
      }

内存结构

Block 在 Prometheus 实现中,主要分为两类:

  • 当前正在写入的,称为 head。当超过 2 小时或超过 120 个点时,head 会将 chunk 写入到本地磁盘中,并使用 mmap 映射到内存中,保存在下文的 mmappedChunk 中。
  • 历史只读的,存放在一数组中
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
type DB struct {
    blocks []*Block
    head *Head
    // ... 忽略其他字段
}

// Block 内的主要字段是 IndexReader,其内部主要是 postings,即倒排索引
// Map of LabelName to a list of some LabelValues's position in the offset table.
// The first and last values for each name are always present.
postings map[string][]postingOffset

type postingOffset struct {
    value string // label value
    off   int    // posting 在对于文件中的 offset
}

在上文磁盘结构中介绍过,postingOffset 不是全量加载,而是每隔 32 个。

Head

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
type Head struct {
    postings *index.MemPostings // Postings lists for terms.
    // All series addressable by their ID or hash.
    series *stripeSeries
    // ... 忽略其他字段
}

type MemPostings struct {
    mtx     sync.RWMutex
    m       map[string]map[string][]uint64  // label key -> label value -> posting lists
    ordered bool
}
  • MemPostings 是 Head 中的索引结构,与 Block 的 postingOffset 不同,posting 是全量加载的,毕竟 Head 保存的数据较小,对内存压力也小。
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
type stripeSeries struct {
    size                    int
    series                  []map[uint64]*memSeries
    hashes                  []seriesHashmap
    locks                   []stripeLock
    seriesLifecycleCallback SeriesLifecycleCallback
}
type memSeries struct {
    sync.RWMutex
    mmappedChunks []*mmappedChunk // 只读
    headChunk     *memChunk // 读写
    ...... // 省略其他字段
    }

type mmappedChunk struct {
    // 数据文件在磁盘上的位置,即上文中的 series ref
    ref              uint64
    numSamples       uint16
    minTime, maxTime int64
}
  • stripeSeries 是比较的核心结构,series 字段的 key 为时间线,采用自增方式生成;value 为 memSeries,内部有存储具体数据的 chunk,采用分段锁思路来减少锁竞争。

使用方式

对于一个查询,大概涉及的步骤:

  1. 根据 label 查出所涉及到的时间线,然后根据 filter 类型,进行集合运算,找出符合要求的时间线
  2. 根据时间线信息与时间范围信息,去 block 内查询符合条件的数据

在第一步主要在 PostingsForMatchers 函数中完成,主要有下面几个优化点:

  • 对于取反的 filter( != !~ ),转化为等于的形式,这样因为等于形式对应的时间线往往会少于取反的效果,最后在合并时,减去这些取反的时间线即可。可参考:Be smarter in how we look at matchers. #572
  • 不同 label 的时间线合并时,利用了时间线有序的特点,采用类似 mergesort 的方式来惰性合并,大致过程如下:

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32

    type intersectPostings struct {
      arr []Postings // 需要合并的时间线数组
      cur uint64 // 当前的时间线
    }

    func (it *intersectPostings) doNext() bool {
    Loop:
      for {
          for _, p := range it.arr {
              if !p.Seek(it.cur) {
                  return false
              }
              if p.At() > it.cur {
                  it.cur = p.At()
                  continue Loop
              }
          }
          return true
      }
    }

    func (it *intersectPostings) Next() bool {
      for _, p := range it.arr {
          if !p.Next() {
              return false
          }
          if p.At() > it.cur {
              it.cur = p.At()
          }
      }
      return it.doNext()
    }

在第一步查出符合条件的 chunk 所在文件以及 offset 信息之后,第二步的取数据则相对简单,直接使用 mmap 读数据即可,这间接利用操作系统的 page cache 来做缓存,自身不需要再去实现 Buffer Pool 之类的数据结构。

总结

通过上文的分析,大体上把 Prometheus 的存储结构以及查询流程分析了一遍,还有些细节没再展开去介绍,比如为了节约内存使用,label 使用了字典压缩,但这并不妨碍读者理解其原理。

此外,Prometheus 默认 2 小时一个 Block 对大时间范围查询不友好,因此后台会对定期 chunk 文件进行 compaction,合并后的文件大小为 min(31d, retention_time * 0.1) ,相关细节后面有机会再单独介绍吧。

参考
